InAsSb 光伏元件

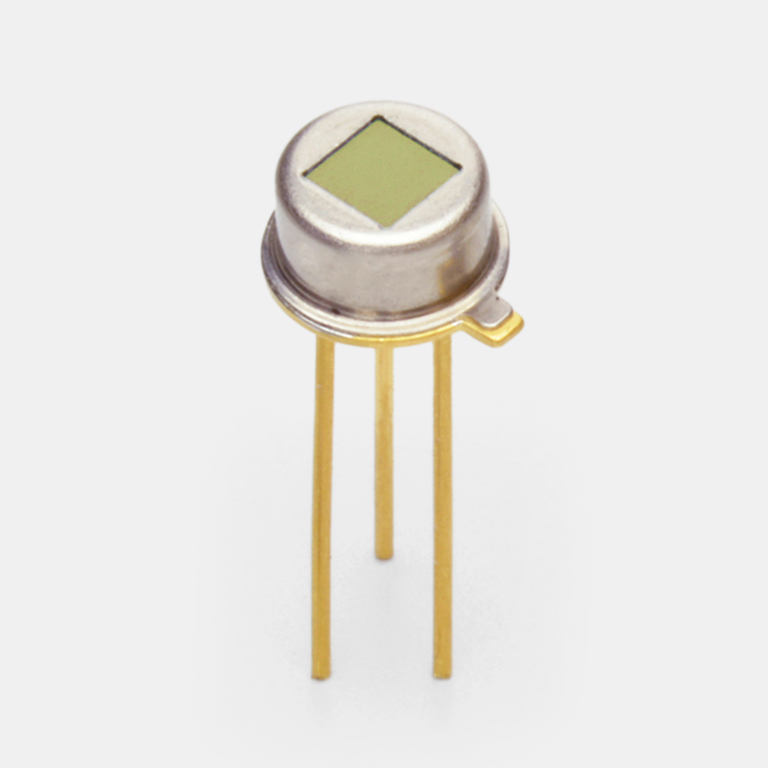

P16612-045CF
带通滤波器集成型红外探测器 (4.45 μm)
P16612-045CF 是 InAsSb 光伏元件，在窗口使用带通滤波器。
与前照式型号相比，使用背照式结构之后大大提高了灵敏度温度系数。它是一种带通滤波器，中心波长为 4.45 μm。使用这种滤波器的产品适合用于火焰监测。它是环保型红外探测器，不使用 RoHS 指令限制使用的铅、汞或镉等物质。
特点
- 高灵敏度
- 高速响应
- 高分流电阻
- 紧凑的表面贴装陶瓷封装
- 兼容无铅回流焊接
详细参数
| 像元数 | 0.7 × 0.7 mm |
|---|---|
| 受光面 | 1 |
| 封装 | 陶瓷 |
| 封装类别 | 非冷却型 |
| 散热 | -- |
| 最大灵敏度波长（典型值） | 4.5 μm (BPF) |
| 截止波长（典型值） | 3.7 mA/W |
| 感光灵敏度（典型值） | 8.6 × 108 cm・Hz1/2/W |
| 比探测能力 D*（典型值） | 8.2 × 10-11 W/Hz1/2 |
| 噪声等效功率（典型值） | 15 ns |
| 上升时间（典型值） | 0.5 pF |
| 结电容（典型值） | Ta=25 ℃，检测率 D*：λ = λp，fc = 1200 Hz，Δf = 1 Hz |
| 测量条件 | Ta=25 ℃，检测率 D*：λ = λp，fc = 1200 Hz，Δf = 1 Hz |
光谱灵敏度特性
外形尺寸图（单位：mm）
