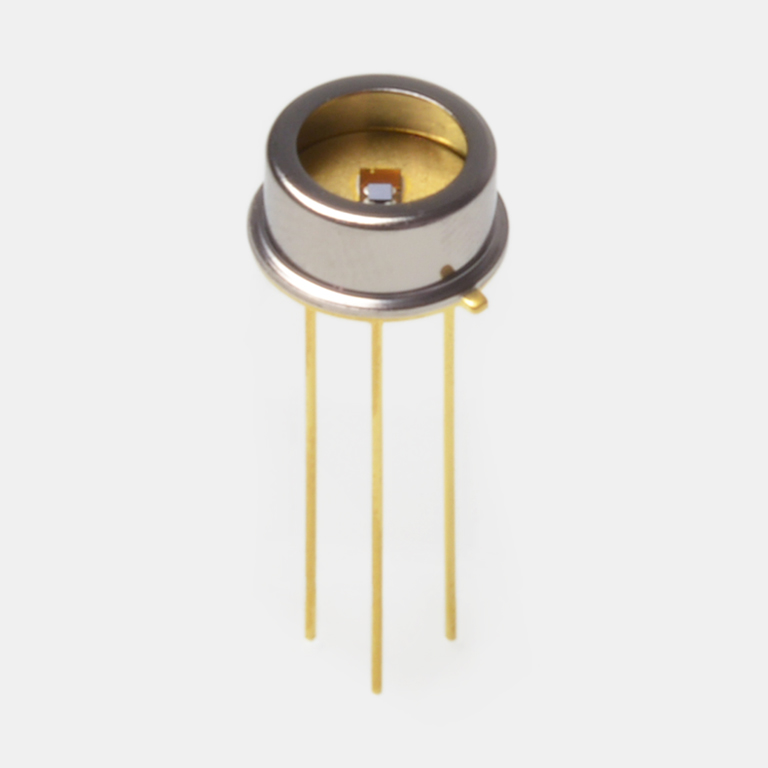

InAsSb 光伏元件
P16613-011CN
高灵敏度、高速红外探测器（适用于 8 μm 以下波段）
P16613-011CN 是一款红外探测器，在波长不超过 8 μm 的光谱带中具有高灵敏度。
滨松独特的晶体生长技术和工艺技术实现了这种高灵敏度。通过使用背照式结构，我们实现了出色的灵敏度的温度特性。本产品是环保型红外探测器，不使用 RoHS 指令限制使用的铅、汞或镉等物质。
特点
- 高灵敏度
- 高速响应
- 高分流电阻
- 紧凑的表面贴装型陶瓷封装
- 兼容无铅回流焊接
- 符合 RoHS 的产品（无铅、汞、镉）
详细参数
| 像元数 | 1 |
|---|---|
| 受光面 | 0.7 × 0.7 mm |
| 封装 | 陶瓷 |
| 封装类别 | 表面贴装型 |
| 散热 | 非冷却型 |
| 最大灵敏度波长（典型值） | 6.5 μm |
| 截止波长（典型值） | InAsSb 光伏元件 |
| 感光灵敏度（典型值） | 6.1 mA/W |
| 比探测能力 D*（典型值） | 3.0 × 108 cm・Hz1/2/W |
| 噪声等效功率（典型值） | 2.0 × 10-10 W/Hz1/2 |
| 上升时间（典型值） | 3 ns |
| 结电容（典型值） | 0.8 pF |
| 测量条件 | Ta=25℃，检测率 D*：λ = λp，fc = 1200 Hz，Δf = 1 Hz |
光谱灵敏度特性
外形尺寸图（单位：mm）
