InAsSb 光伏元件
P16849-013CN
具有改善的感光灵敏度温度系数的红外探测器（高达 5 μm 波段）

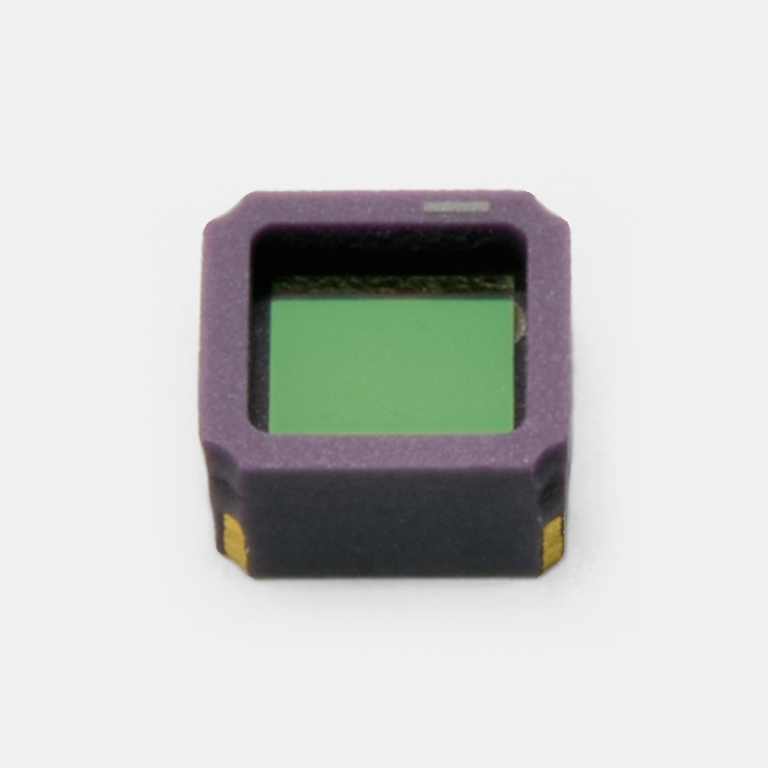

P16849-013CN 是双通道红外探测器，使用滨松独创的晶体生长和工艺技术，在高达 5 μm 的光谱带具有高灵敏度。它是无窗口类型，客户可以在上面安装两种类型的滤波器。与前照式型号相比，使用背照式结构之后大大提高了灵敏度温度系数。本产品是环保型红外探测器，不使用 RoHS 指令限制使用的铅、汞或镉等物质。
特点
- 高灵敏度
- 高速响应
- 高分流电阻
- 紧凑的表面贴装陶瓷封装
- 兼容无铅回流焊接
- 符合 RoHS 的产品（无铅、汞、镉）
注意
本产品的芯片未密封且会外露。芯片上的电极等部件不受外壳或窗口的保护，因此与普通产品相比，在操作过程中需要特别小心。
使用本产品之前，请务必阅读下文所述的“Precautions / Unsealed products”。
详细参数
| 受光面 | 0.7×0.7 mm |
|---|---|
| 像元数 | 2 |
| 封装 | 陶瓷 |
| 制冷 | 非冷却型 |
| 最大灵敏度波长（典型值） | 4.1 μm |
| 截止波长（典型值） | 5.3 μm |
| 感光灵敏度（典型值） | 0.0045 A/W |
| 检测率 D*（典型值） | 1.0×109 cm・Hz1/2/W |
| 噪声等效功率（典型值） | 4.3×10-11 W/Hz1/2 |
| 上升时间（典型值） | 15 ns |
| 结电容（典型值） | 0.5 pF |
| 测量条件 | Ta = 25°C，检测率 D*：λ = λp，fc = 1200 Hz，Δf = 1 Hz |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
