MPPC
S13362-3050DG
显著减少串扰，低后脉冲

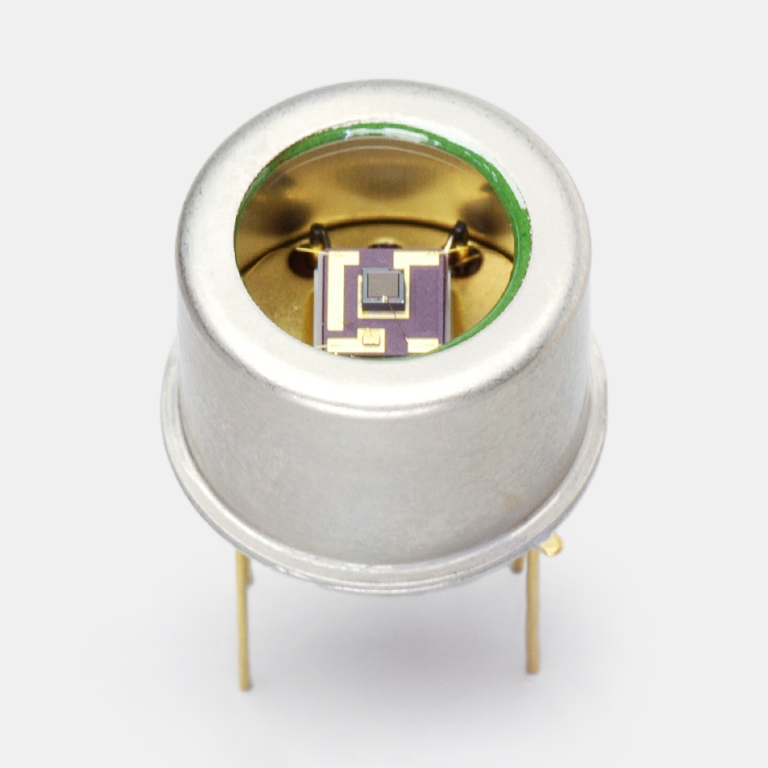

冷却型，受光面：3 × 3 mm
S13362 系列不但具有 S13360 系列的低后脉冲和低串扰特性，还可以通过制冷来减少暗计数。S13362 系列将 S13360 系列与电子制冷器集成在一起。受光面有两种尺寸：1.3 × 1.3 mm 和 3.0 × 3.0 mm。
特点
- 显著减少串扰
- 低后脉冲
- 卓越的光子计数能力
- 低电压（典型值为 VBR = 51.1 V）供电
- 高增益：105 至 106
- 低暗计数（通过制冷，正常温度下不超过计数的 1/20）
- 使用简单的读出电路进行操作
详细参数
| 封装类型 | 金属（TO-8） |
|---|---|
| 通道数 | 1 通道 |
| 有效光敏区/通道 | 3 × 3 mm |
| 像素数/通道 | 3600 |
| 像素尺寸 | 50 μm |
| 灵敏度波长范围 | 320 至 900 nm |
| 最大灵敏度波长（典型值） | 450 nm |
| 暗计数/通道（典型值） | 25 kcps |
| 结电容/通道（典型值） | 320 pF |
| 增益率（典型值） | 1.7×106 |
| 测量条件 | Ta = 25°C |
外形尺寸图（单位：mm）
