颜色传感器

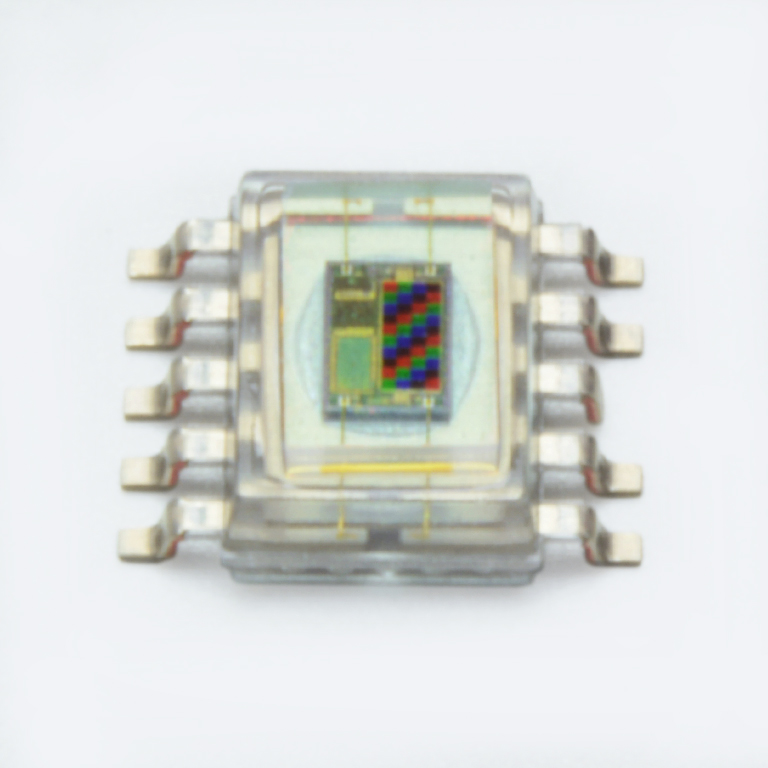

S13683-03DT
兼容 I2C 接口的颜色传感器（卷盘式包装）
S13683-03DT 是一款支持 I2C（集成电路总线）接口的数字式颜色传感器。它对红光 (λ=615 nm)、绿光 (λ=530 nm)、蓝光 (λ=460 nm) 敏感，并将检测结果输出为每种颜色的 16 位数字数据。每种颜色的光电二极管将自动按顺序切换以进行测量。灵敏度和积分时间可调节，以便在宽范围内进行光测量。还提供规格相同的棒状包装类型 (S13683-04DS)。
特点
-兼容 I2C 接口
- 红光、绿光、蓝光和校正通道的连续测量
-校正通道
通道检测从滤波器外部进入的入射光。
该产品减去校正通道输出，以获得高精度的 RGB 数据。
-两步灵敏度切换（灵敏度比率 1：10）
-通过设置积分时间进行灵敏度调整
-低电压（2.5 V 或 3.3 V）供电
-低消耗电流：典型值为 75 μA。
-带内部红外截止滤波器
-宽动态范围（低增益：1 至 10 klx）
-包装类型：卷盘 (S13683-03DT)
棒状 (S13683-04DS)
详细参数
| 产品类型 | RGB 数字颜色传感器 |
|---|---|
| 封装材料 | 塑料 |
| 封装类型 | 表面贴装型 |
| 封装尺寸 | 3.0 × 4.0 × 1.85 mm |
| 受光面 | 0.54 × 1.1 mm |
| 灵敏度波长范围（蓝色） | 400 至 540 nm |
| 灵敏度波长范围（绿色） | 455 至 630 nm |
| 灵敏度波长范围（红色） | 575 至 660 nm |
| 最大灵敏度波长（蓝色） | 460 nm |
| 最大灵敏度波长（绿色） | 530 nm |
| 最大灵敏度波长（红色） | 615 nm |
| 感光灵敏度低范围（蓝色） | 3.8 计数/lx |
| 感光灵敏度低范围（绿色） | 8.7 计数/lx |
| 感光灵敏度低范围（红色） | 12.4 计数/lx |
| 感光灵敏度低范围（校正通道） | 3.0 计数/lx |
| 感光灵敏度高范围（蓝色） | 40.0 计数/lx |
| 感光灵敏度高范围（绿色） | 86.0 计数/lx |
| 感光灵敏度高范围（红色） | 122.0 计数/lx |
| 感光灵敏度高范围（校正通道） | 30.0 计数/lx |
| 工作温度 | -40 至 +85 摄氏度 |
| 储存温度 | -40 至 +105 摄氏度 |
| 测量条件 | 典型值 Ta = 25°C，Vdd = 3.3 V，一个光源，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
