硅光电二极管

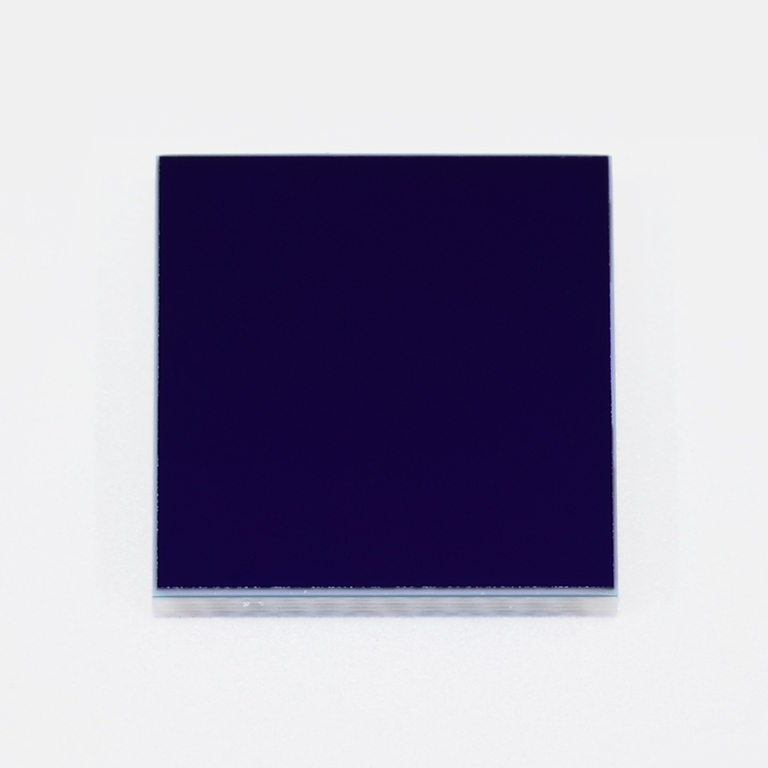

S13957-01
具有 CSP 结构的背照式光电二极管
通过使用背照式光电二极管，可直接将闪烁体耦合在芯片上。它在产品周围设计了最小的死区。以便并排排列多个产品。
特点
- 光谱响应范围：400 至 1100 nm
- 封装尺寸：5 × 5 mm
- 易于与闪烁体耦合
- 易于与闪烁体耦合
因为受光面没有配线，并且能够最大限度地提高与闪烁体的光学耦合效率，因此它适用于非破坏性 X 射线检查设备。
注意
本产品的芯片未密封且会外露。芯片上的电极等部件不受外壳或窗口的保护，因此与普通产品相比，在操作过程中需要特别小心。
使用本产品之前，请务必阅读下文所述的“Precautions / Unsealed products”。
详细参数
| 受光面 | 4.7 × 4.7 mm |
|---|---|
| 封装 | 玻璃环氧树脂 |
| 封装类别 | 未密封 |
| 制冷 | 非冷却型 |
| 反向电压（最大值） | 10 V |
| 光谱响应范围 | 400 至 1100 nm |
| 最大灵敏度波长（典型值） | 960 nm |
| 感光灵敏度（典型值） | 0.61 A/W |
| 暗电流（最大值） | 1000 pA |
| 上升时间（典型值） | 15 μs |
| 结电容（典型值） | 230 pF |
| 测量条件 | 典型值 Ta=25°C，感光灵敏度：λ = 920 nm，暗电流：VR = 10 mV，结电容：VR = 0 V，f = 10 kH，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
相关文档
