硅光电二极管

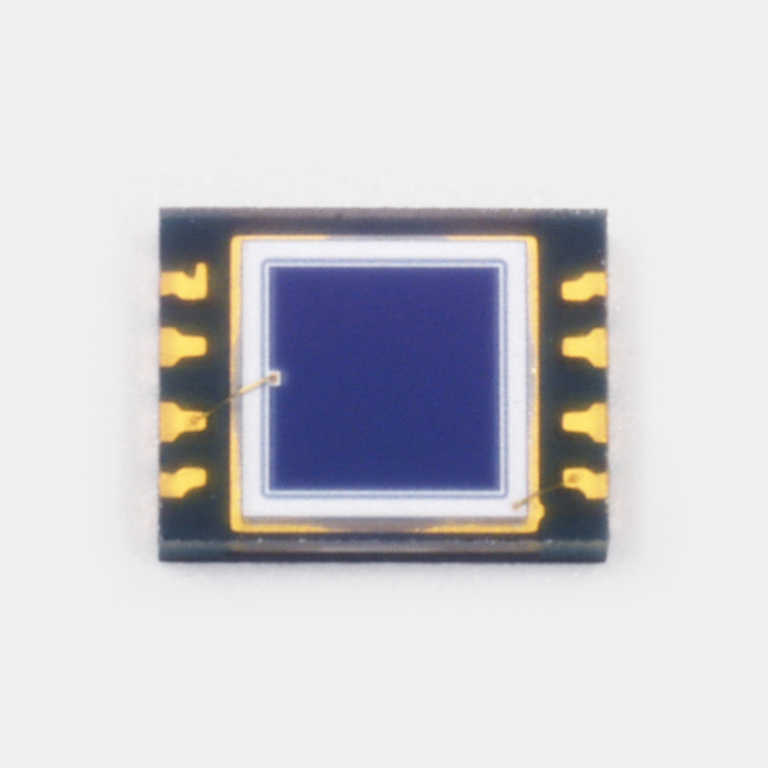

S16008-66
适用于可见光到近红外区域的硅光电二极管
S16008-66 是一款表面贴装型硅光电二极管，在可见光至近红外区域具有高灵敏度。这提供了比以前的 S2387 系列更高的灵敏度。
特点
- 在可见光至近红外区域具有高灵敏度
- 低暗电流
- 卓越的线性度
- 兼容无铅回流焊接
详细参数
| 受光面 | 5.8 × 5.8 mm |
|---|---|
| 封装 | 玻璃环氧树脂 |
| 封装类别 | 表面贴装型 |
| 制冷 | 非冷却型 |
| 光谱响应范围 | 380 至 1100 nm |
| 最大灵敏度波长（典型值） | 960 nm |
| 感光灵敏度（典型值） | 0.64 A/W |
| 暗电流（最大值） | 50 pA |
| 上升时间（典型值） | 9.0 μs |
| 结电容（典型值） | 4000 pF |
| 噪声等效功率（典型值） | 2.0×10-15 W/Hz1/2 |
| 测量条件 | Ta = 25°C，典型值，感光灵敏度：λ = λp，暗电流：VR = 10 mV，上升时间：VR = 0 V，RL = 1 kΩ，10-90%，结电容：VR = 0 V，f = 10 kHz，噪声等效功率：VR = 0 V，λ = λp，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
