硅光电二极管

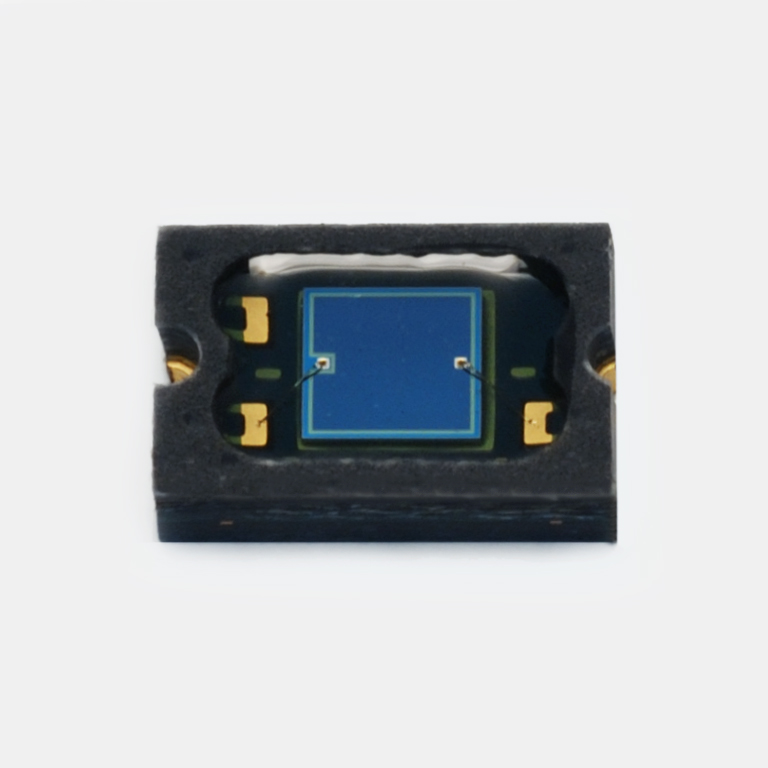

S9981-01CT
适用于无铅回流焊接和宽温度范围
S9981-01CT 是一款适用于无铅回流焊接的光电二极管，具有极宽的工作温度和储存温度范围（-40°C 至 +125°C）。小而薄的无铅封装可减少印刷电路板上的安装面积。
特点
-无铅焊料回流焊适应性
- 表面贴装型、小而薄的无铅封装
-工作/储存温度：-40 至 +125°C
-受光面：1.3 × 1.3 mm
-高灵敏度：0.65 A/W (λ=960 nm)
详细参数
| 受光面 | 1.3 × 1.3 mm |
|---|---|
| 像素数 | 1 |
| 封装 | 玻璃环氧树脂 |
| 封装类别 | 表面贴装型 |
| 散热 | 非冷却型 |
| 反向电压（最大值） | 10 V |
| 灵敏度波长范围 | 320 至 1100 nm |
| 最大灵敏度波长（典型值） | 960 nm |
| 感光灵敏度（典型值） | 0.65 A/W |
| 暗电流（最大值） | 1000 pA |
| 上升时间（典型值） | 0.5 μs |
| 结电容（典型值） | 200 pF |
| 测量条件 | Ta = 25°C，典型值，感光灵敏度：λ = λp，暗电流：VR = 5 V，结电容：VR = 0 V，f = 1 MHz，除非另有说明 |
光谱灵敏度特性
外形尺寸图（单位：mm）
