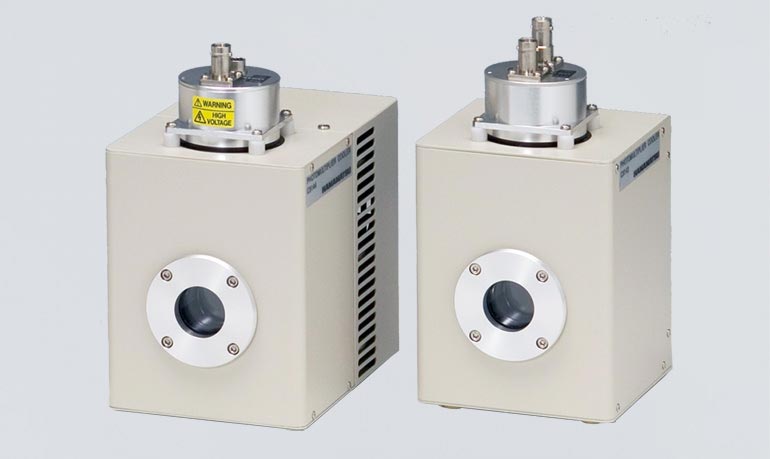

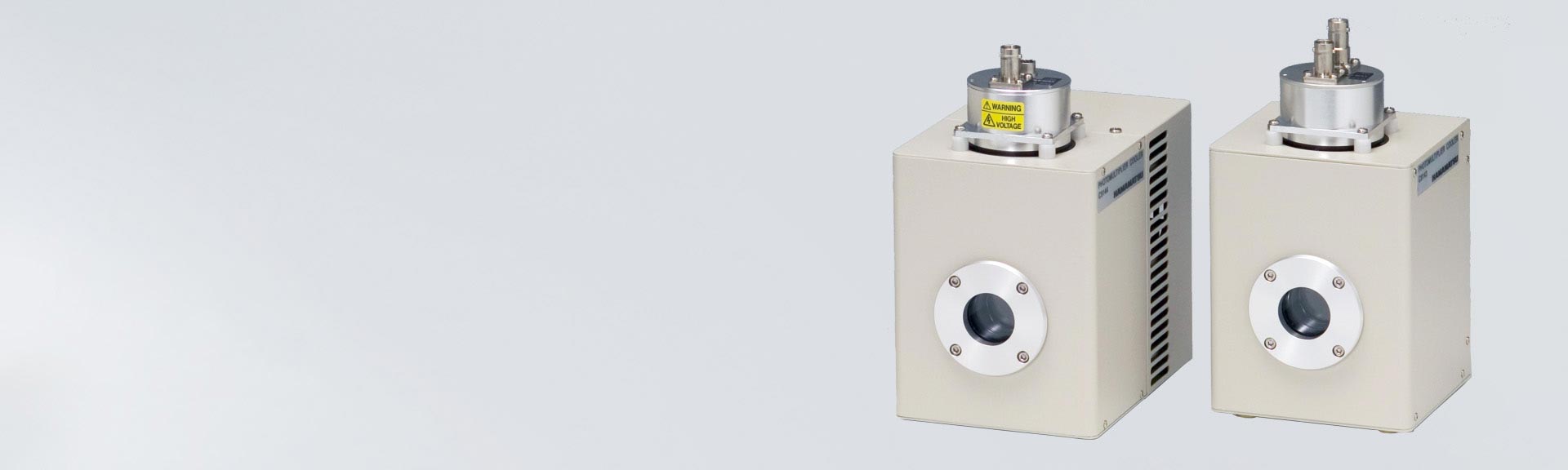

热电冷却器

部件号	产品名称	类型	特点	冷却方法	热交换方法	冷却温度	达到稳定冷却温度所需的时间	光学窗材	光输入孔径尺寸	适用的 PMT（单独出售）	适用的插座总成（单独出售）	适用的 PMT 支架（单独出售）	工作环境温度	冷却器重量
C12473	光电倍增管制冷器	适用于 25 mm 端窗型 PMT	紧凑型	采用珀尔帖元件的热电冷却装置	强制风冷	约 -25 摄氏度	约 30 分钟	合成二氧化硅（170 nm 至 2200 nm）	24 x 24 mm	25 mm (1") 正方形端窗型	E2924-01、E13778	--	+5 摄氏度至 +35 摄氏度	约 0.3 kg
C14760	热电制冷器	适用于 28 mm 侧面式 PMT	用于控制外部设备的内置接口 (D-sub)	采用珀尔帖元件的热电冷却装置	水	约 -30 °C（冷却水 +20 °C）	约 70 分钟	二氧化硅玻璃（185 nm 至 2200 nm）	8 x 24 mm	28 mm (1-1/8") 直径侧面式	C9145（DP 型）、E9146（D 型）	--	+5°C 至 +40°C	约 1 kg
C14761	热电制冷器	适用于 28 mm 侧面式 PMT	用于控制外部设备的内置接口 (D-sub)	采用珀尔帖元件的热电冷却装置	强制风冷	约 -25 °C（环境温度 +25 °C）	约 90 分钟	二氧化硅玻璃（185 nm 至 2200 nm）	8 x 24 mm	28 mm (1-1/8") 直径侧面式	C9145（DP 型）、E9146（D 型）	--	+5°C 至 +35°C	约 1.7 kg
C10372	光电倍增管制冷器	适用于端窗型 PMT	内置静电和磁屏蔽装置	采用珀尔帖元件的热电冷却装置	水	约 -30 摄氏度（冷却水 +20 摄氏度）	约 120 分钟	带加热器的真空双窗格合成二氧化硅窗口（185 nm 至 2200 nm）	--	28 mm (1-1/8") 直径，51mm (2") 直径端窗型	E2762 系列	--	+5 摄氏度至 +40°摄氏度	约 5.8 kg
C10373	光电倍增管制冷器	适用于 MCP-PMT	--	采用珀尔帖元件的热电冷却装置	水	约 -30 摄氏度（冷却水 +20 摄氏度）	约 120 分钟	带加热器的真空双窗格合成二氧化硅窗口（185 nm 至 2200 nm）	--	MCP-PMT（R3809U-50 系列，R3809U-61、-63、-64）	--	E3059-500（R3809U-50 系列，R3809U-61、-63、-64）	+5 摄氏度至 +40°摄氏度	约 5.5 kg
