光电倍增管模块
C13953-01
C13953-01 是一款光电倍增管模块，由一个直径为 13 mm 的端窗型光电倍增管与一个塑料闪烁体、一个高压电源电路和一个光子计数电路相连组成。C13953-01 的工作输入为 ±5 V，输出与入射辐射剂量成比例的逻辑脉冲。
特点
- 包含一个塑料闪烁体
- 高灵敏度
- ±5 V 供电
- 紧凑轻便
- 逻辑脉冲输出
用途
- β 射线检测
- 软 X 射线检测
- 粉尘粒子测量（例如 PM2.5）
详细参数
| 参数 | 说明/值 | 单位 | |
|---|---|---|---|
| 输入电压 | ±5 | V | |
| 最大输入电压 | ±5.5 | V | |
| 输入电流 (*1) | 典型值 | +100/-30 | mA |
| 有效面积 | φ12 | mm | |
| 遮光膜 | 镀铝膜 | - | |
| 闪烁体 | 塑料闪烁体（厚度：0.5 mm） | - | |
| 脉冲对分辨率 | 10 | ns | |
| 输入/输出分配比 | 1/2、1/4、1/8、1/16、1/32（初始设置：1/8） | - | |
| 计数线性度 (*2) | 1 × 107 | s-1 | |
| 最大输出脉冲数（除以 8 时） | 1.25 × 106 | s-1 | |
| 输出格式 | 集电极开路 | - | |
| 最大输出耐受电压 | +15 | V | |
| 输入/输出连接器 | MZW-1-1-2PM (MAC8) | - | |
| 工作环境温度/湿度 (*3) | 0 °C 至 +40 °C / 低于 80% | - | |
| 储存环境温度/湿度 (*3) | -15 °C 至 +50 °C / 低于 85% | - | |
| 重量 | 63 | g | |
备注
*1：集电极开路输出未连接时
*2：随机脉冲，10% 计数丢失时
*3：无冷凝

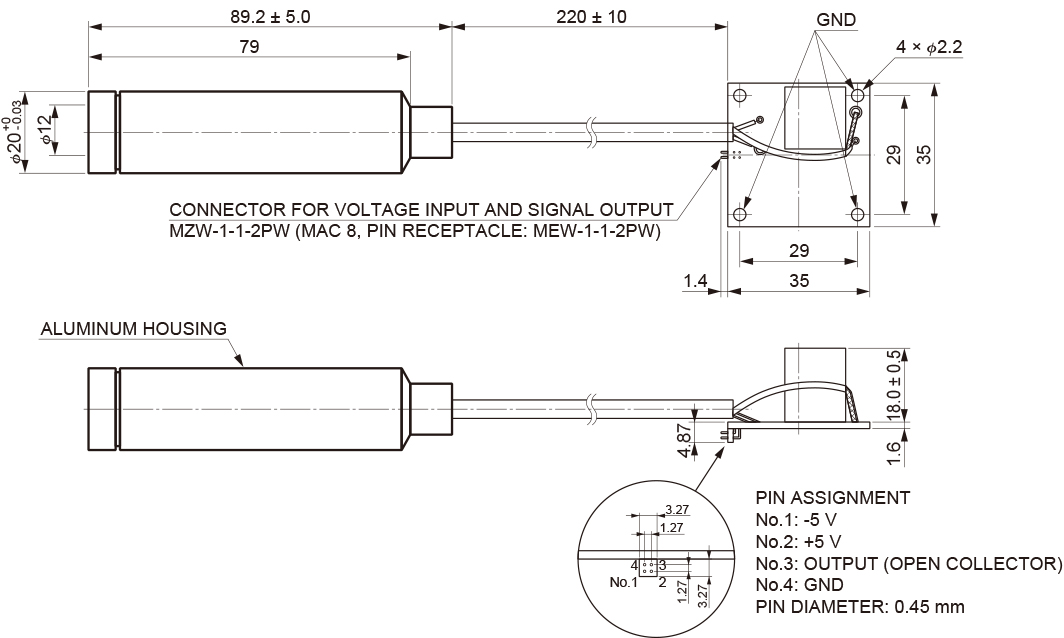

外形尺寸图（单位：mm）
