NDP.view2 图像查看软件

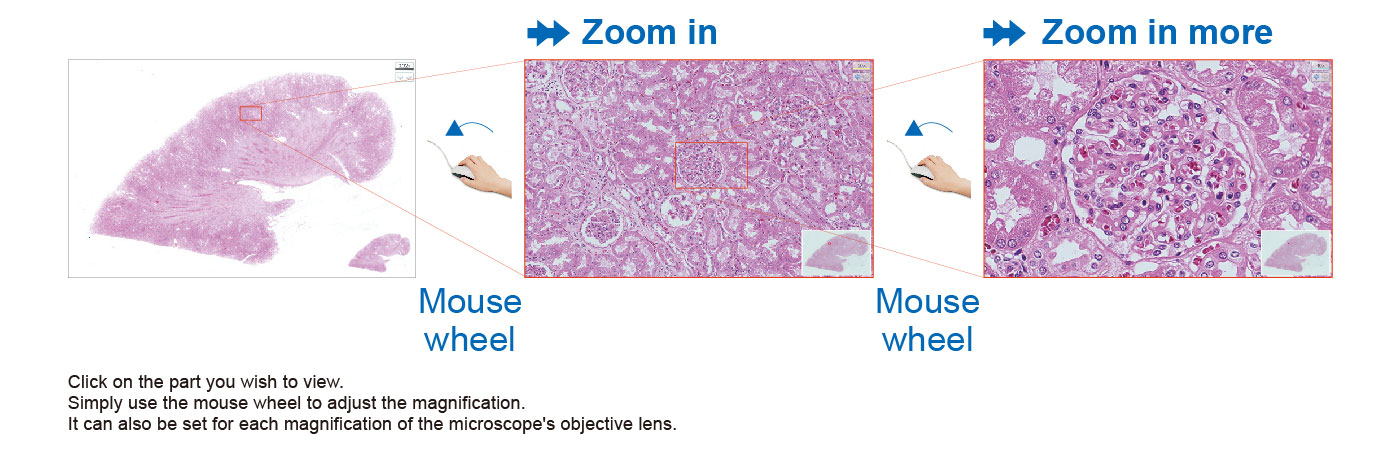

与地图应用程序相似,允许您放大和缩小以及旋转图像。

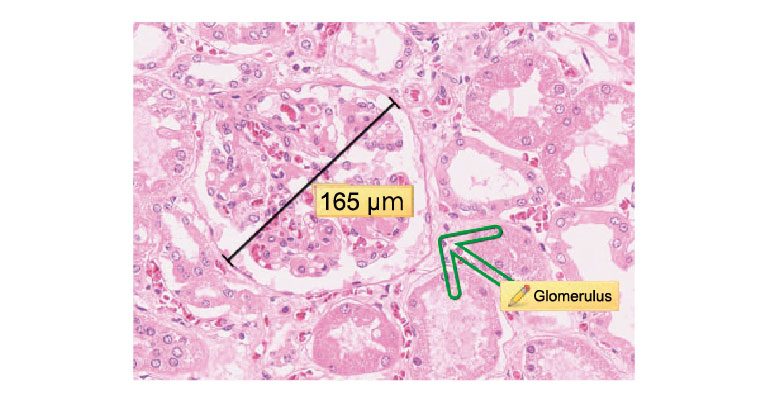

插入箭头、绘图和注释。还可以测量指定点的长度和表面积。

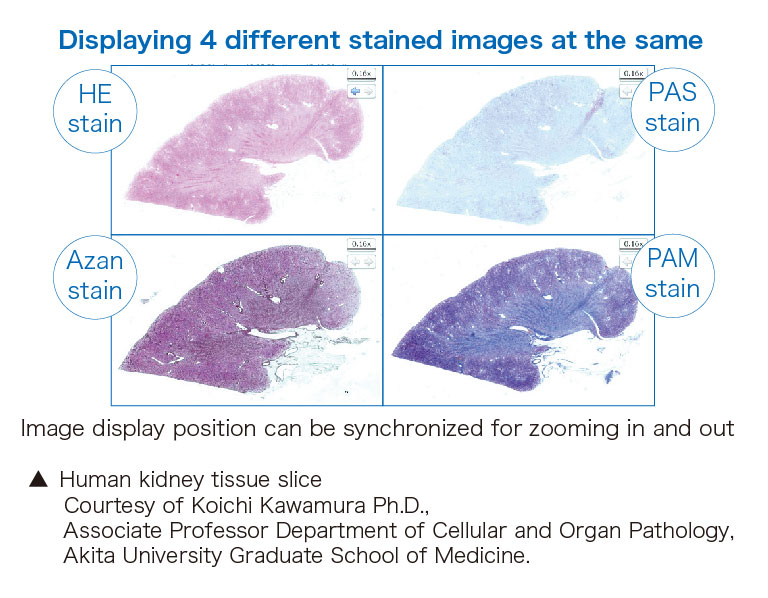

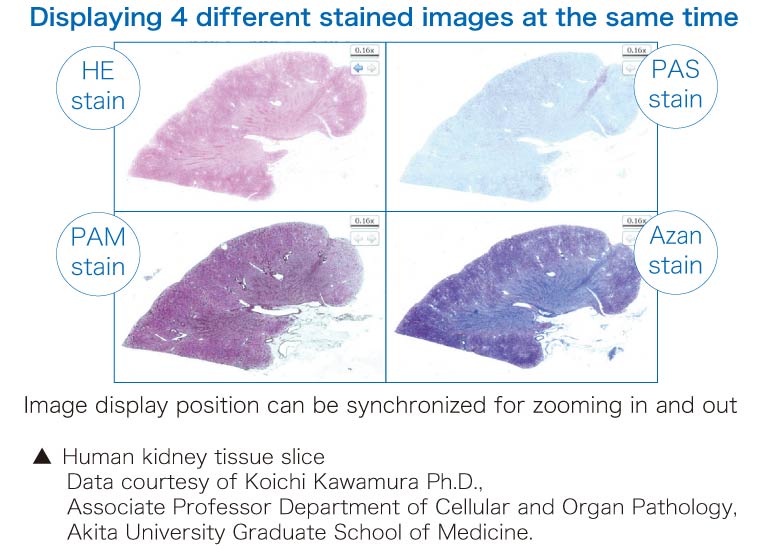

能够显示多个图像,开启了显微镜前所未有的新功能。通过该功能可以检查细节,同时保持更宽广的视角,从而更容易在同一查看器中比较不同的染色剂。此外,还可以同步数字切片,以增强用户体验。
Windows | Mac OS | |
---|---|---|
操作系统 | Windows 8.1、Windows 10、Windows 11 32 位和 64 位 |
macOS 10.15、11.2、12 |
CPU | 酷睿系列或更快的处理器 | 英特尔多核处理器 |
内存 | 2 GB 或以上 | |
可用 HDD 空间 | 100 MB 或以上 | |
VGA | 兼容 Direct X11 或更高版本(不可或缺) | OpenGL 2.0 支持 |
屏幕分辨率 | XGA (1024×768) 或更高 |
NDP.view2 可免费用于滨松格式的玻片。您可以从以下链接下载。
操作系统:Windows 8.1、Windows 10、Windows 11(32 位和 64 位)
操作系统:macOS 10.15、11.2、12
安装软件后,NDP.view2 (U12388-01) 将成为查看滨松玻片的默认查看器。如果您想将 NDP.view 保留为默认查看器,请参阅说明手册。
NDP.view2 (U12388-01) 仅供研究使用,不适用于体外诊断 (IVD)。如果您需要将 NDP.view2 用于 IVD,请联系滨松的经销商或销售代表。
安装到 Mac OS 10.8 或更高版本 [0.3 MB/PDF]
该软件可能无法在某些计算机上顺畅运行。由于操作系统或控制方式,该软件可能无法运行。请阅读“控制方式”的条款。
操作系统:Windows 8.1、Windows 10(32 位和 64 位)
操作系统:macOS 10.14、10.15、11.2
操作系统:Windows 8.1、Windows 10(32 位和 64 位)
操作系统:macOS 10.13 - 10.15
操作系统:Windows 7、Windows 8.1、Windows 10(32 位和 64 位)
操作系统:macOS 10.13 - 10.15
2020/04/15
我们已收到一些在运行 Windows 7 和 DirectX 11 初始版本的 PC 上启动时发生错误的报告 (Direct3DError)。安装最新的 Windows 更新可以解决错误。
如果您收到错误且无法更新 Windows,请使用以下旧版本。由此带来的任何不便,我们深表歉意。
2018/11/15
我们从用户处收到报告,指出在特定类型的 Windows PC 上启动时显示错误 (Direct3DError)。在这种情况下,请使用以下旧版本。由此带来的任何不便,我们深表歉意。
操作系统:Windows 7、Windows 8.1(32 位和 64 位)
操作系统:OS X 10.9 - 10.11
支持除原生滨松图像以外的文件格式(ndpi 扩展名)。可以查看来自其他扫描仪制造商的图像,包括 svs、scn、mrxs、czi 和 vsi 图像格式。
*不保证加载所有图像数据。

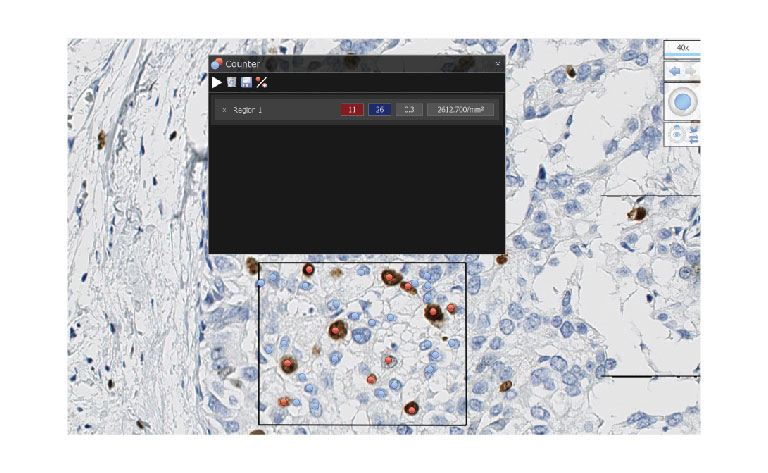

使用户能够对指定标注内的对象进行计数。结果可以保存为 CSV 文件。

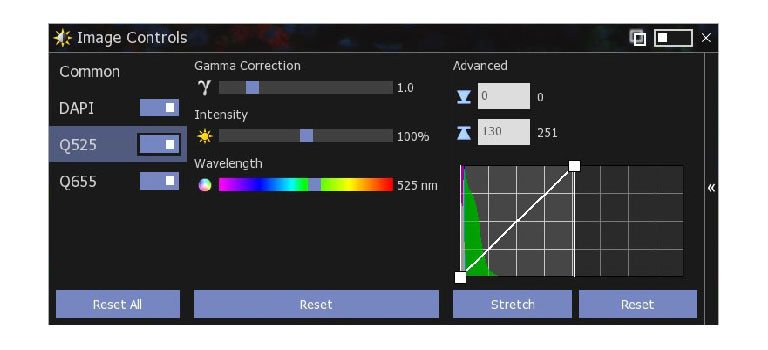

允许通过轻松调整导入和导出光强度以及控制直方图和线条轮廓来控制查找表 (LUT)。
NDP.view2 U12388-01 | NDP.view2 Plus U12388-02 | ||
---|---|---|---|
基本操作 | 放大和缩小 | 〇 | 〇 |
数字变焦 (8×) | 〇 | 〇 | |
滚动 | 〇 | 〇 | |
图像旋转 | 〇 | 〇 | |
图像导出 | 〇 | 〇 | |
用于切片观察的 有效功能 |
图像控制 | 〇 | 〇 |
缩略图 | 〇 | 〇 | |
多视图 | 〇 | 〇 | |
注释 | 〇 | 〇 | |
无级缩放 | 〇 | 〇 | |
用于具体观察 和分析的 必要功能 |
支持非滨松 WSI 格式图像 | ー | 〇 |
通过鼠标点击计数 | ー | 〇 | |
轨迹图导出 | ー |
〇 | |
报告导出 | ー | 〇 | |
审核 | ー | 〇 | |
案例视图 | ー | 〇 | |
TMA 代码记录 | ー | 〇 | |
放大镜 | ー | 〇 | |
网格覆盖 | ー | 〇 | |
用于荧光 图像观察的 有效功能 (适用于 NanoZoomer S60) |
荧光颜色选择 | 〇 | 〇 |
线条轮廓、直方图 | ー | 〇 | |
LUT 控制 | ー | 〇 |
