目前还不可以。
是的,只要显微镜有一个侧端口,可以完全实现光路切换就可以。这种情况需要 C 型接口适配器。
如果侧端口光轴中心高度在 65 mm 至 105 mm 之间,则只能调整 MAICO装置的高度。
您只能使用我们的 "HCImage 系列" "HCImage Live" 来仅控制 MAICO,并使用软件中的 "HCImage Acquisition / Analysis"来控制显微镜聚焦。
"HCImage Acquisition/Analysis" 可以控制 Z 轴载物台的以下控制器。
・Ludl:MAC5000 / MAC6000
・Prior:OptiScan Ⅰ、Ⅱ、Ⅲ / ProScan Ⅱ、Ⅲ / ES10ZE
・Physik Instrumente (PI):piezo E-709 / E-665 / E-662
请联系我们了解其他详情。
您可以选择任意组合四种波长,但 405 nm 或 488 nm 波长必须安装其一。不能安装两个以上相同波长的激光器。
目前没有,但如果有对其他波长的需求,我们可能会增加型号。
在 488 nm 子装置中,高灵敏度 GaAsP 型的光电子量超出标准型 1.9 倍左右。(EGFP,感光灵敏度为 510 至 540 nm)
在 561 nm 子装置中,高灵敏度 GaAsP 型的光电子量超出标准型 2.3 倍左右。(DsRed,感光灵敏度为 580 至 619 nm)
在 638 nm 子装置中,高灵敏度 GaAsP 型的光电子量超出标准型 2.3 倍左右。(Alexa 647,感光灵敏度为 660 至 730 nm)
不能。探测器本身无法更换,需要更换子装置。

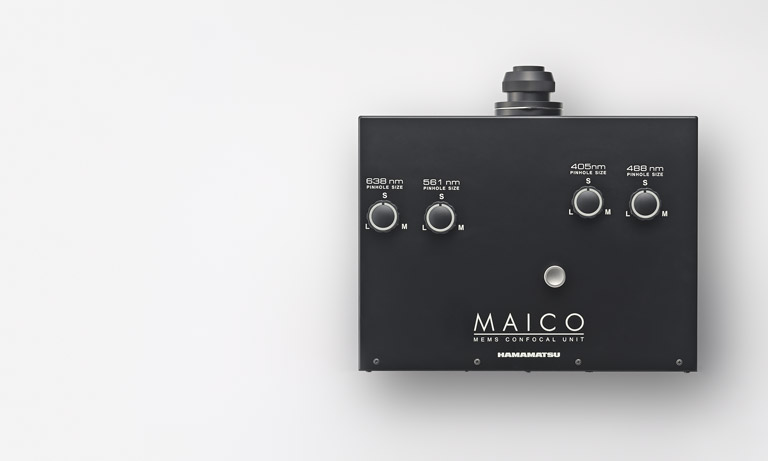

每个子装置的针孔大小可按三种大小进行调整:小、中、大。

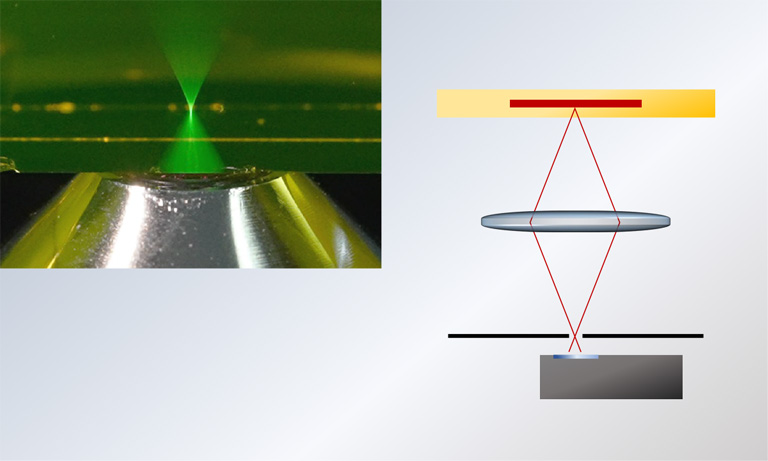

针孔越小,分辨率就越高,但检测到的光量会更低。相反,针孔较大时,分辨率降低,而检测到的光量则增加。
由于检测到的光量和分辨率之间达成的平衡,建议将 20 至 40 倍物镜的针孔设置为小,将 40 至 63 倍物镜的针孔设置为中,并将 64 倍或以上的物镜针孔设置为大。
目前仅支持荧光成像。
是的,可以。该软件支持您选择同时进行多波长测量或连续进行多波长测量。
缩放功能通过更改光学扫描元件的扫描范围来更改输出图像的放大率。
一般来说,缩放有望提高分辨率。
图像的实际分辨率和放大率取决于您使用的物镜。
缩放功能为 1 倍时,像素为 6.25 μm,2 倍时,像素为 3.125 μm(换算为 1 倍物镜)。
不能,它不适合 FRET 成像。这取决于实现无串扰同步多波长观察的光路设计。
根据国际标准,配备激光器的设备需根据其光强度和波长划分级别。
级别分为 1 到 4,并以字母区分级别子类。一般来说,级别数越高,激光越强,保护措施应当更多。最高级别为 4,次之为 3B,再次则为 3R。
MAICO为 3R 级。其他常见的共聚焦激光显微镜是 3B 级。
不,不需要。
能,可以使用探测器获得透射光图像以进行荧光测定。
光强度取决于透射光源。
建议使用 MAICO,在"透射光模式"下进行透射光观察。
