定制/测量方法 | 氙气闪光灯
氙气闪光灯是脉冲光源，可发射具有瞬时高峰值输出的光。
发射的光是从 UV 区到红外区的连续光谱，用于各种用途，包括化学分析和成像。
滨松提供高质量、高精度的氙气闪光灯，以及专门设计的触发开关和电源等外围设备，以最大限度地发挥氙气闪光灯的性能。此外，还提供与这些外围设备集成的易于使用的光源模块。
设计最佳驱动电路对于氙气闪光灯发挥最大性能至关重要。可提供专门为氙气闪光灯设计的电源和触发开关等外围设备，还可提供设计这些电路和设备的技术支持。我们欢迎您就我们目录外的任何定制产品提出要求，因此请随时就您的用途和操作条件咨询我们。
定制
● 定制产品示例

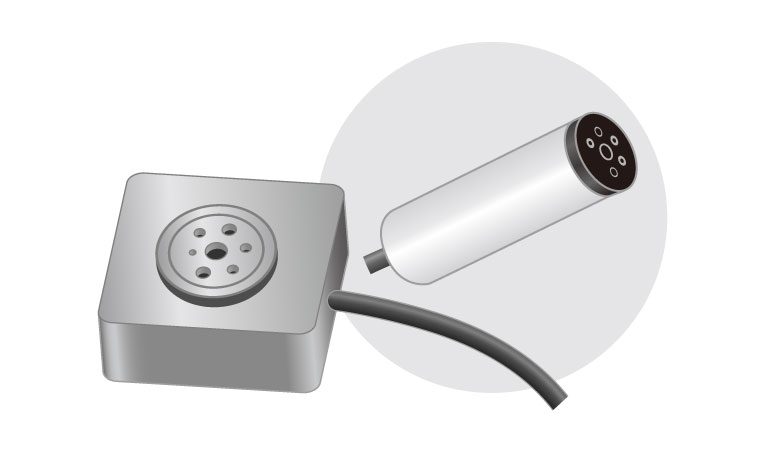

具有定制形状的氙气闪光灯模块

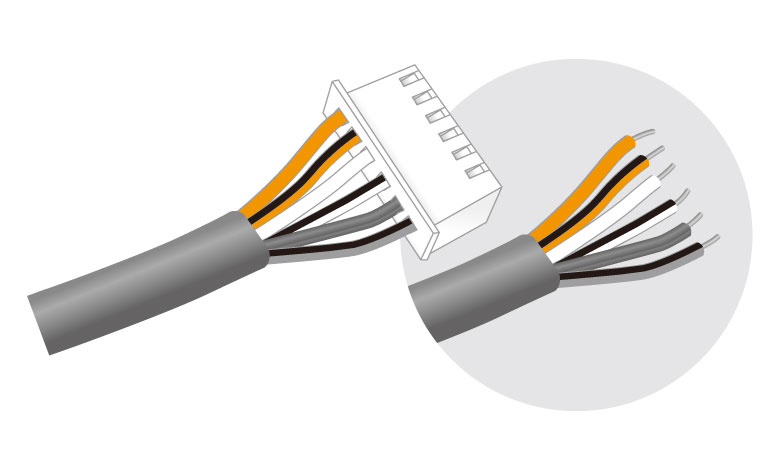

具有定制输入电缆连接器的氙气闪光灯模块

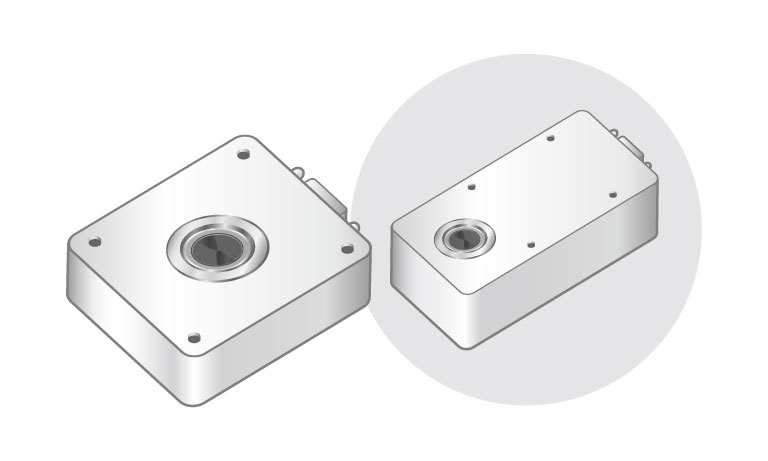

具有定制形状的触发开关
测量方法
氙气闪光灯是脉冲光源，如果使用直流光源测量方法，则可能在检测信号中产生较大的噪声。为了避免这种情况，测量必须与光源的每次闪光和峰值保持电路或采样保持电路同步进行。使用相机或光谱仪时，务必设置积分时间，以便仅在发光时采集信号。

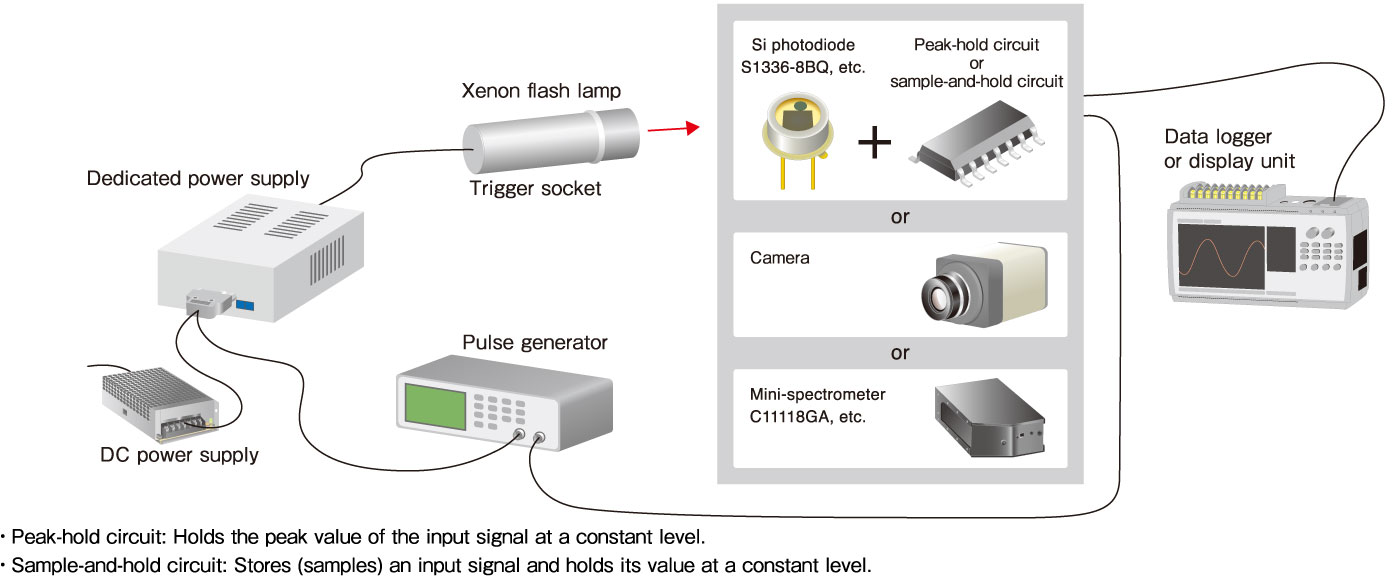

● 设置示例

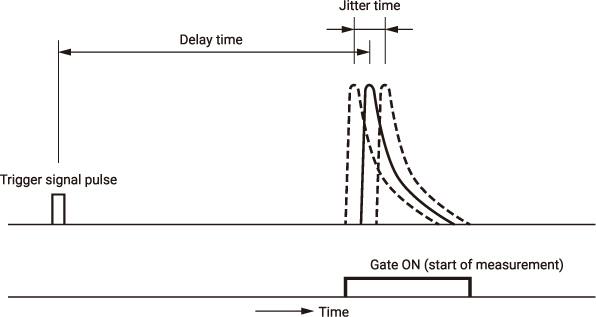

输入触发信号（延迟时间）几微秒后，氙气闪光灯会发出闪光。此外，每次闪光都会发生几百纳秒的时间波动（抖动时间）。为了进行准确的测量，必须考虑这种延迟和抖动时间。
● 闪光操作
