在短波长至 800 nm 波长范围内保持高灵敏度

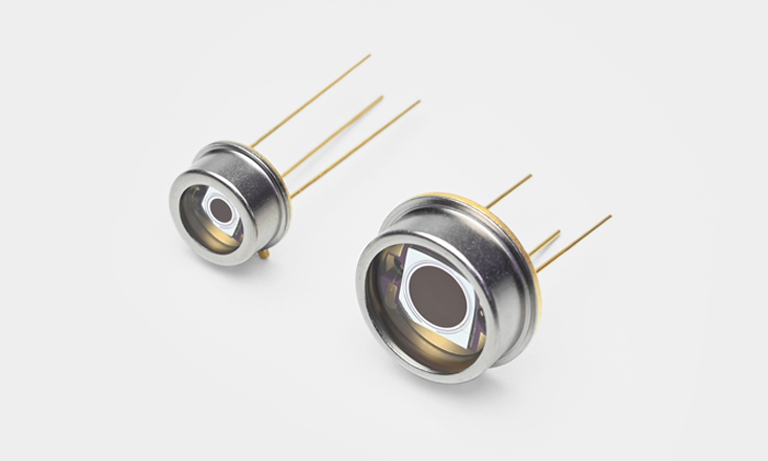

Si APD S17353 系列
- Hamamatsu Photonics K.K. Solid State Division
这些 APD 在在短波长至 800 nm 波长的范围内具有更高的灵敏度。它们不仅在短波区域具有高灵敏度，而且与传统的短波长 APD（S8664 系列、S12053 系列）相比，它们在较长波长下也能实现高增益，同时保持低噪声水平。这使得它们适用于需要较大波长范围的微弱的光线测量和分析仪器等应用。
特点
- 在短波长至 800 nm 波长范围内保持高灵敏度和低噪声
- 6 种具有不同受光面尺寸的产品阵容
用途
- 低光量测量
- 分析仪器
光谱灵敏度特性
增益波长依赖性
产品阵容
| 类型编号 | 封装 | 受光面尺寸 (mm) |
灵敏度波长范围 典型值 (nm) |
感光灵敏度 典型值 (A/W) |
暗电流 典型值 (nA) |
|---|---|---|---|---|---|
| S17353-02K | TO-5 | Φ 0.2 | 320 至 1000 | 0.44 | 1 |
| S17353-05K | Φ 0.5 | 1.5 | |||
| S17353-10K | Φ 1.0 | 2 | |||
| S17353-20K | Φ 2.0 | 5 | |||
| S17353-30K | TO-8 | Φ 3.0 | 10 | ||
| S17353-50K | Φ 5.0 | 25 |
