ORCA®-Flash4.0 LT3 数字 CMOS 相机
C11440-42U40
ORCA-Flash4.0 LT3 是一款用于荧光成像的新型科学 CMOS 相机，是在 2011 年发布的 ORCA-Flash 4.0 的基础上改进而来。
它具有生命科学应用等荧光成像所需的高水平性能，不仅可用于基础研究应用，还可集成到各种类型的设备中。
ORCA是日本滨松光子学株式会社，及其全球子公司（欧洲联盟、日本、英国、美国）注册使用的商标。
特点
- 低读出噪声（标准扫描）：1.5 个电子 (rms)，0.9 个电子（中位数）
- 快速读出（快速滚动，全分辨率）：40 帧/秒
- 大视野：13.312 mm (H)×13.312 mm (V)
- 高分辨率：2048 (H)×2048 (V)
- 高量子效率：82%（峰值 QE）
用途
- 延时成像
- 多维成像
- Ca2+ 成像
- DNA 芯片读取
与 BSI 相机相当或更好的高信噪比

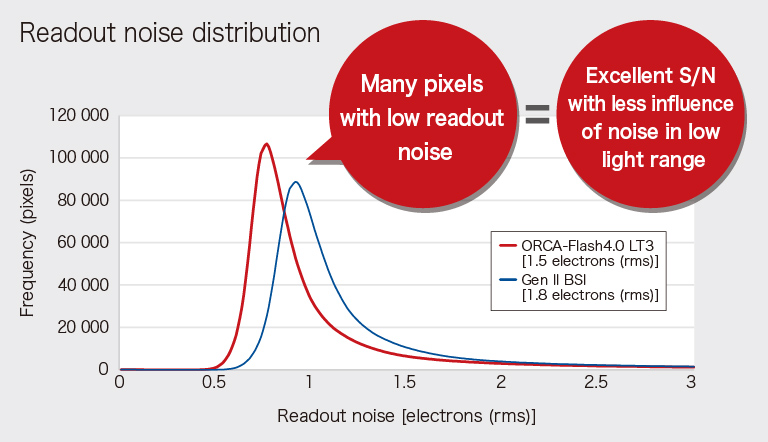

下图比较了第二代 BSI 相机* 的读出噪声分布，表明 ORCA-Flash4.0 LT3 具有更多像素，读出噪声更小。
ORCA-Flash4.0 LT3 具有 1.5 个电子 rms 的低读出噪声，可提供与 BSI 相机相当或更好的高信噪比，尤其是在低光范围内。
这种性能可以在高质量的多维成像中得到证明，例如具有低激发光、低光毒性和光漂白的长时间延迟成像。
* BSI 相机：背照式相机
快速读出
ORCA-Flash4.0 LT3 能够实现 40 帧/秒的读出，甚至比传统的 ORCA-Flash4.0 LT+（30 帧/秒）更快。这对于需要高时间分辨率实时测量的用途非常有用。
大视野
13.312 mm (H) × 13.312 mm (V) 的宽视野支持在单次拍摄中获得更多信息。
这有助于提高 DNA 芯片读取等实验的通量。
PC 建议
随着 ORCA-Flash4.0 LT3 的推出，用户现在能够以每秒 40 帧的速度将 400 万像素的图像流式传输到他们的计算机。通过使用 ORCA-Flash4.0 PC LT3 建议列出的指南，可以满足计算机对高数据率的建议。
软件
详细参数
| 产品编号 | C11440-42U40 |
|---|---|
| 成像设备 | 科学 CMOS 图像传感器 |
| 有效像素数 | 2048 (H) × 2048 (V) |
| 像素尺寸 | 6.5 μm (H) × 6.5 μm (V) |
| 有效面积 | 13.312 mm (H) × 13.312 mm (V) |
| 最大阱容（典型值） | 30,000 个电子 |
| 动态范围（典型值） | 33 000：1 *1 20 000：1 *2 |
| 冷却方法 | 强制风冷，珀耳帖制冷 |
| 冷却温度 | +10 °C（强制风冷，风扇速度：快速，环境温度：+10 °C 至 +30 °C） |
| 全分辨率下的帧速率 | 快速滚动：40 帧/秒 标准扫描：30 帧/秒 |
| 读出噪声（典型值） | 快速滚动：1.9 个电子 (rms)，1.3 个电子（中位数） 标准扫描：1.5 个电子 rms / 0.9 个电子（中位数） |
| 暗电流（典型值） | 0.6 个电子/像素/秒（典型值） （冷却温度：+10 °C） |
| 数字输出 | 16 位 |
| 曝光时间 | 内部触发模式 *3（快速滚动）：1 ms 至 10 s 内部触发模式 *3（标准扫描）：3 ms 至 10 s 具有子阵列读出的内部触发模式（快速滚动）：40 μs 至 10 s 具有子阵列读出的内部触发模式（标准扫描）：129.99 μs 至 10 s |
| 外部触发器输入模式 | 边缘触发、全局复位边缘触发、电平触发、全局复位电平触发、同步读出触发、启动触发 |
| 触发延迟功能 | 0 s 至 10 s，步长为 1 μs |
| 触发输入连接器 | SMA |
| 触发输出 | 3 个可编程定时输出、触发就绪输出、全局曝光定时输出、低输出、高输出 |
| 触发输出连接器 | SMA |
| 像素合并 | 2×2、4×4 |
| 子阵列 | 是 |
| 接口 | USB 3.1 Gen 1 |
| 透镜接口 | C 型接口 |
| 电源 | 交流 100 V 至交流 240 V，50 Hz/60 Hz |
| 用电功耗 | 约 75 VA |
| 操作环境温度 | 0 °C 至 +40 °C（风扇速度：快速） |
| 操作环境湿度 | 30% 至 80%（无雾气现象） |
| 存储环境温度 | −10 °C 至 +50 °C |
| 存储环境湿度 | 最高 90% （无雾气现象） |
*1 根据标准扫描中最大阱容和读出噪声的比率计算（中位数）
*2 根据标准扫描中最大阱容和读出噪声的比率计算 (rms)
*3 内部触发模式下的最短曝光时间因子阵列大小和位置而异。

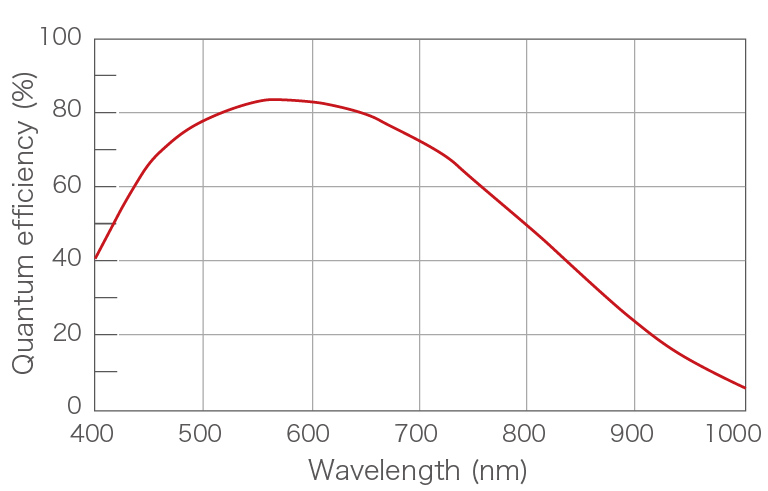

光谱灵敏度特性

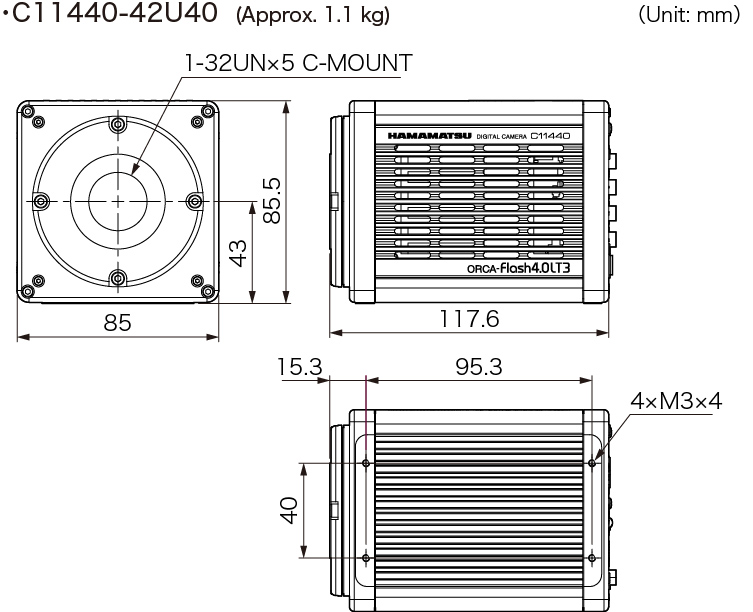

尺寸
说明手册
特殊站点
本网站提供有关科学相机的信息。
由于相机类型和性能范围广泛，因此要为每种用途选择最佳相机，这非常重要。
网站介绍了技术信息、模拟工具和实际用途示例，帮助您全面了解相机的性能并选择最适合您用途的相机。
