ORCA®-Flash4.0 V3 数字 CMOS 相机
凭借我们在高性能科学相机和高级成像用途方面的丰富经验,滨松推出了新的 ORCA-Flash4.0 V3。无论是采集精美科学图像,还是需要检测、定量和速度的实验等各种用途,这款相机均能应付自如。ORCA-Flash4.0 V3 具有板载 FPGA 处理功能,可实现智能数据缩减、高度精细的相机内、像素级校准、更高的 USB3.0 帧速率、针对性的创新触发功能、获得专利的光片读出模式和单独的相机噪声特性化,是成像的精密仪器。
ORCA是日本滨松光子学株式会社,及其全球子公司(欧洲联盟、日本、英国、美国)注册使用的商标。

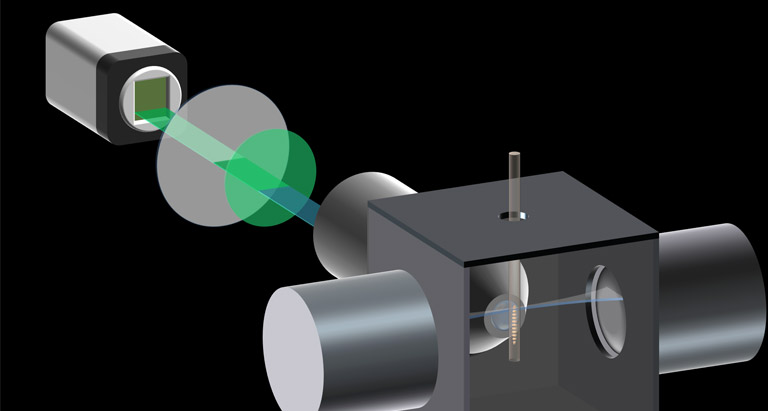

“光片读出模式”是滨松 sCMOS 相机的独特专利功能,可提高光片显微镜中的信噪比。
有关光片读出模式原理和特点的更多信息,请参阅下面的详细信息。
作者 | 标题 | 来源 |
---|---|---|
Xuanze Chen, Zhiping Zeng, Rongqin Li, Boxin Xue, Peng Xi, Yujie Sun | Superior performance with sCMOS over EMCCD in super-resolution optical fluctuation imaging | 生物医学光学杂志 |
Luchang Li, Mengting Li, Zhaoning Zhang, Zhen-Li Huang | Assessing low-light cameras with photon transfer curve method | 创新光学健康科学杂志 |
S Hayashi, Y Okada | Ultrafast superresolution fluorescence imaging with spinning disk confocal microscope optics | 细胞分子生物学 |
Matthias Mehling, Tino Frank, Cem Albayrak, Sava? Tay | Real-time tracking, retrieval and gene expression analysis of migrating human T cells | 芯片实验室 |
Ying S. Hu, Maxwell Zimmerley, Yu Li, Robin Watters, and Hu Cang | Single-Molecule Super-Resolution Light-Sheet Microscopy | 化学物理化学 |
Peter W Winter and Hari Shroff | Faster fluorescence microscopy: advances in high speed biological imaging | 化学生物学最新观点 |
Ronny Forster, Hui-Wen Lu-Walther, Aurelie Jost, Martin Kielhorn, Kai Wicker, and Rainer Heintzmann | Simple structured illumination microscope setup with high acquisition speed by using a spatial light modulator | 光学快报 |
Jeffrey P. Nguyen, Frederick B. Shipley, Ashley N. Linder, George S. Plummer, Joshua W. Shaevitz, and Andrew M. Leifer | Whole-brain calcium imaging with cellular resolution in freely behaving C. elegans | 神经元和认知 |
Zong W, Zhao J, Chen X, Lin Y, Ren H, Zhang Y, Fan M, Zhou Z, Cheng H, Sun Y, Chen L. | Large-field high-resolution two-photon digital scanned light-sheet microscopy | 细胞研究,2014 年 9 月 26 日,doi: 10.1038/cr.2014.124。[印刷前电子出版物] |
Vladimirov N, Mu Y, Kawashima T, Bennett DV, Yang CT, Looger LL, Keller PJ, Freeman J, Ahrens MB. | Light-sheet functional imaging in fictively behaving zebrafish | Nat Methods。2014 年 7 月 27 日,doi: 10.1038/nmeth.3040。[印刷前电子出版物] |
Mickoleit M, Schmid B, Weber M, Fahrbach FO, Hombach S, Reischauer S, Huisken J. | High-resolution reconstruction of the beating zebrafish heart | Nat Methods。2014 年 7 月 20 日,doi: 10.1038/nmeth.3037。[印刷前电子出版物] |
Vettenburg T, Dalgarno HI, Nylk J, Coll-Lladó C, Ferrier DE, Čižmár T, Gunn-Moore FJ, Dholakia K. | Light-sheet microscopy using an Airy beam | Nat Methods。2014 年 5 月,11(5):541-4. doi: 10.1038/nmeth.2922。2014 年 4 月 6 日电子出版。 |
Juette MF、Terry DS1、Wasserman MR、Zhou Z、Altman RB、Zheng Q、Blanchard SC。 | The bright future of single-molecule fluorescence imaging | 化学生物学最新观点 2014 年 6 月 20 日;20C:103-111. doi: 10.1016/j.cbpa.2014.05.010。 |
Menon M, Askinazi OL, Schafer DA. | Dynamin2 organises lamellipodial actin networks to orchestrate lamellar actomyosin | PLoS One。2014 年 4 月 7 日,9(4):e94330. doi: 10.1371/journal.pone.0094330. eCollection 2014。 |
Gualda EJ, Vale T, Almada P, Feijó JA, Martins GG, Moreno N. | OpenSpinMicroscopy: an open-source integrated microscopy platform | Nat Methods。2013 年 7 月,10(7):599-600. doi: 10.1038/nmeth.2508。2013 年 6 月 9 日电子出版。 |
Fahrbach FO, Voigt FF, Schmid B, Helmchen F, Huisken J. | Rapid 3D light-sheet microscopy with a tunable lens | 光学快报。2013 年 9 月 9 日,21(18):21010-26. doi: 10.1364/OE.21.021010。 |
Fullerton S, Bennett K, Toda E, Takahashi T. | Optimization of precision localization microscopy using CMOS camera technology | 国际光电工程学会 SPIE 8228, Single Molecule Spectroscopy and Superresolution Imaging V, 82280T (2012 年 2 月 9 日); doi:10.1117/12.906336; http://dx.doi.org/10.1117/12.906336 |
Fullerton S, Bennett K, Toda E, Takahashi T. | Camera simulation engine enables efficient system optimization for super-resolution imaging | 国际光电工程学会 SPIE 8228, Single Molecule Spectroscopy and Superresolution Imaging V, 822811 (February 9, 2012); doi:10.1117/12.906346; http://dx.doi.org/10.1117/12.906346 |
Singh AP, Krieger JW, Buchholz J, Charbon E, Langowski J, Wohland T. | The performance of 2D array detectors for light sheet based fluorescence correlation spectroscopy. | 光学快报。2013 年 4 月 8 日,21(7):8652-68。 |
Ahrens MB, Keller PJ. | Whole-brain functional imaging at cellular resolution using light-sheet microscopy. | Nat Methods。2013 年 3 月 18 日,doi: 10.1038/nmeth.2434。 |
Long F, Zeng S, Huang ZL. | Localization-based super-resolution microscopy with an sCMOS camera part II: experimentalmethodology for comparing sCMOS with EMCCD cameras. | 光学快报。2012 年 7 月 30 日,20(16):17741-59。 |
Baumgart E, Kubitscheck U. | Scanned light sheet microscopy with confocal slit detection. | 光学快报。2012 年 9 月 10 日;20(19):21805-14。 |
Takao D, Nemoto T, Abe T, Kiyonari H, Kajiura-Kobayashi H, Shiratori H, Nonaka S. | Asymmetric distribution of dynamic calcium signals in the node of mouse embryo during left-right axis formation. | 发育生物学 2013 年 4 月 1 日;376(1):23-30。 |
Huang F, Hartwich TM, Rivera-Molina FE, Lin Y, Duim WC, Long JJ, Uchil PD, Myers JR, Baird MA, Mothes W, Davidson MW, Toomre D, Bewersdorf J. | Video-rate nanoscopy using sCMOS camera-specific single-molecule localization algorithms. | Nat Methods。2013 年 5 月 26 日,doi: 10.1038/nmeth.2488。 |
Ma H, Kawai H, Toda E, Zeng, S, Huang ZL | Localization-based super-resolution microscopy with an sCMOS camera part III: camera embedded data processing significantly reduces the challenges of massive data handling | 光学快报,2013 年第 11 期,第 38 卷,第 1769-1771 页 |
Baumgart E., Kaminski T. | Scanned LSFM with Confocal Detection. | 成像和显微镜,2013 年第 1 期,第 15 卷。 |
Xu D, Jiang T, Li A, Hu B, Feng Z, Gong H, Zeng S, Luo Q. | Fast optical sectioning obtained by structured illumination microscopy using a digital mirror device. | J Biomed Opt. 2013 年 6 月,18(6):60503. doi: 10.1117/1.JBO.18.6.060503. |
随着 ORCA-Flash4.0 的推出,用户现在能够以每秒 100 帧的速度将 400 万像素的图像流式传输到他们的计算机。通过使用 ORCA-Flash4.0 PC 建议列出的指南,可以满足计算机对高数据率的建议。

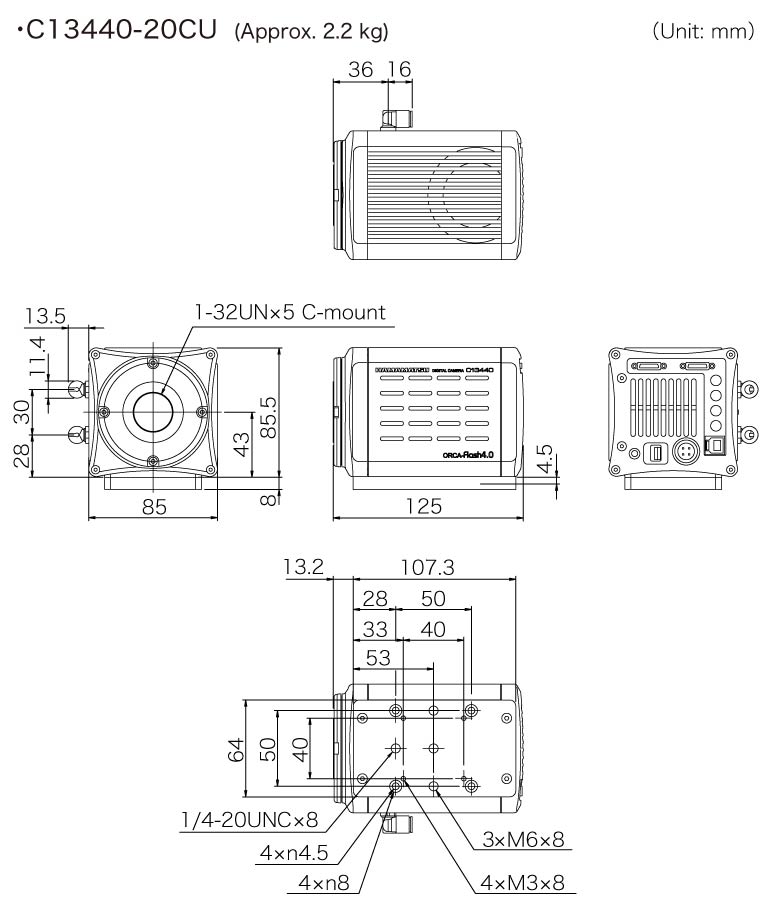

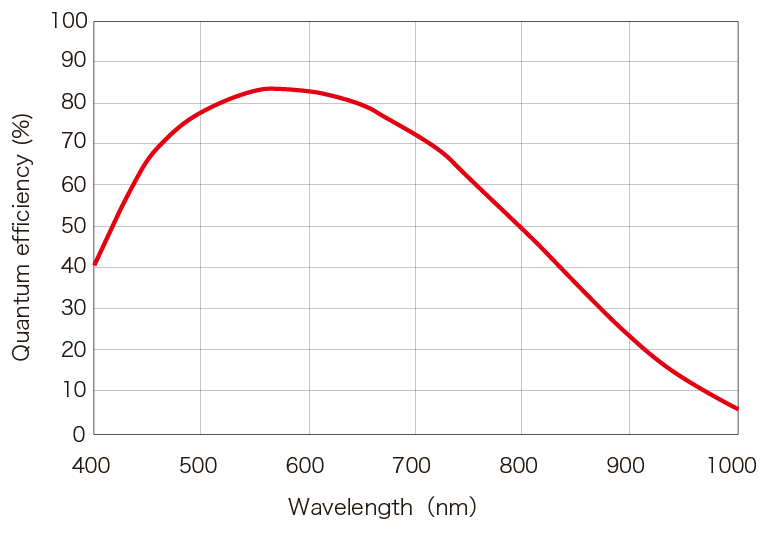

类型编号 | C13440-20CU |
---|---|
成像设备 | sCMOS |
有效像素数 | 2048 (H)×2048 (V) |
细胞大小 | 6.5 μm×6.5 μm |
有效面积 | 13.312 mm×13.312 mm |
最大阱容 | 30,000 个电子(典型值)* |
读出速度 | 100 帧/秒(全分辨率、标准扫描、Camera Link)* 40 帧/秒(全分辨率、标准扫描、USB 3.0、16 位)* 53 帧/秒(全分辨率、标准扫描、USB 3.0、12 位)* 80 帧/秒(全分辨率、标准扫描、USB 3.0、8 位)* |
读出噪声 | 标准扫描(100 帧/秒,典型值):1.6 个电子 rms(1.0 电子中值) 慢速扫描(30 帧/秒,典型值):1.4 个电子 rms(0.8 电子中值) |
冷却方法 | 珀耳帖制冷 |
冷却温度 | 强制风冷(环境温度 +20 ̊C):-10 ̊C 水冷 (+20 ̊C):-10 ̊C 水冷 (+15 ̊C):-30 ̊C |
暗电流 | 0.06 个电子/像素/秒(风冷至 -10 ̊C)(典型值) 0.06 个电子/像素/秒(水冷至 -10 ̊C)(典型值) 0.006 个电子/像素/秒(水冷至 -30 ̊C)(典型值) |
动态范围 | 37,000:1(典型值) |
接口 | 相机链接/USB 3.0 |
AD 转换器 | 16 位/12 位/8 位 |
透镜接口 | C 型接口 |
